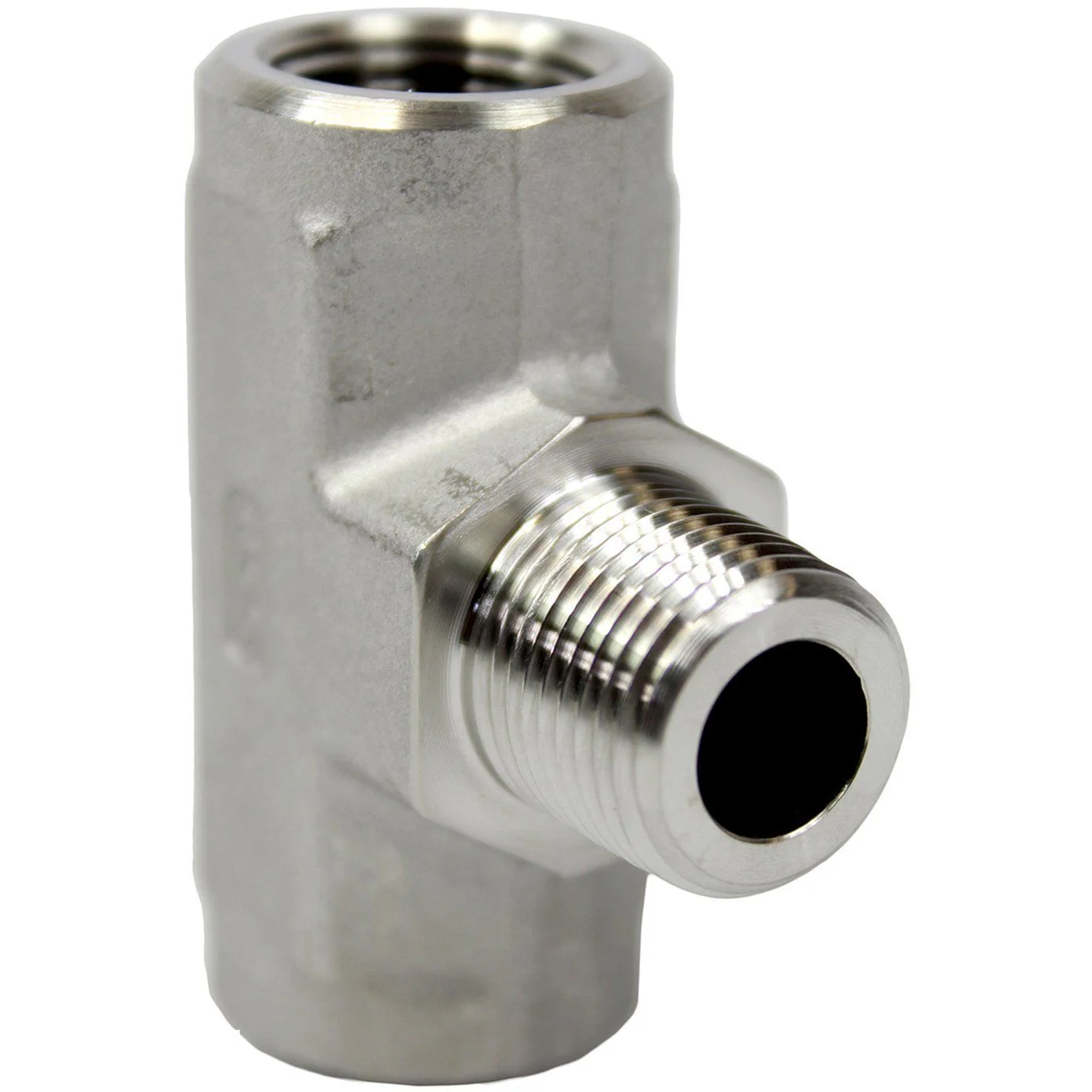

Branch Tee

SSP - Branch Tee

SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.

***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. BVV recommends GAS PTFE Tape





Specifications
Connection Type 1	Female NPT
Connection Size 1	Specified by User
Material	316 Stainless Steel
	ASTM A-276 and A-479 bar stock, A-182 forgings.
Working Pressure (PSIG)	1/4" - 7750
	3/8" - 6800
NPT Pressure Rating	>10,000PSI
	ASME B31.3





SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!



Dimensions
A	1.76 in
E	0.28 in
H	3/4 in
P	1/4 in
L	0.88 in
S	1.09 in
